Shinko FZ Series Intrinsically Safe Bench Scales

The Shinko FZ Series of Intrinsically Safe Bench Scales are ATEX approved for Zones 0, 1 and 2 applications. All the FZ models have IP65 rating allowing them to be used in tough environments. Stainless steel construction with a choice of two indicators i.e. i02 and i03. Both with Date and Time, Check-weighing and counting functions. The i03 indicator has two additional sub-displays for displaying Tare Weight, Gross Weight, Lower and Upper limits, Date and Time etc. Scale supplied with mains PSU with 5m of cable for use in a safe area. All models supplied with 1m of cable with column mounting for the display except models FZ150K1GFEx and FZ300K1GFEx which have 5m of cable.

Shinko FZ Intrinsically Safe Bench Scale, main features:

EX Zone 0,1 & 2 Hazardous use: Weighing operation must be often carried out in hazardous area in industry like pharmaceutical, aloma-chemicals, etc, The Ex models of the FZ series comply with category 1G (Zone 0, 1 and 2). All advantages such as "two-in-one", IP protection, excellent weighing performance are available in FZ series.

High Capacity and High Precision – Two in One: VibraFZ series combines high capacity and high precision in single unit. Unique technology "tuning-fork" sensor enables "two-in-one" feature. This unique technology also ensures excellent weighing performance and long-term stability even in tough condition.

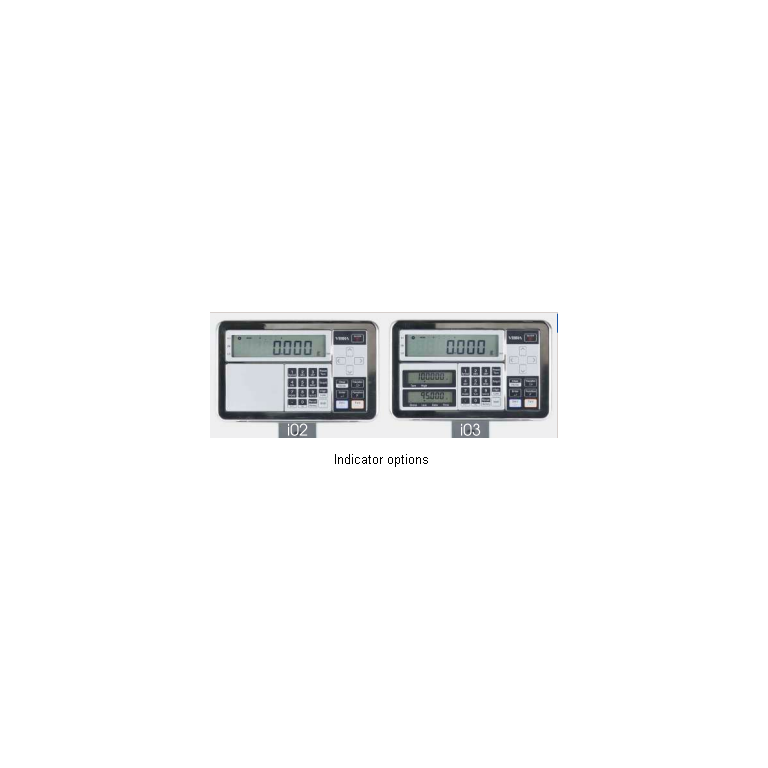

Secelctable Indicator: You can choose one of two indicators, i02 type and i03 type. i03 type has two sub-displays in which two additional information can be indicated (tare weight, gross weight, lower and upper limit, etc..) It make

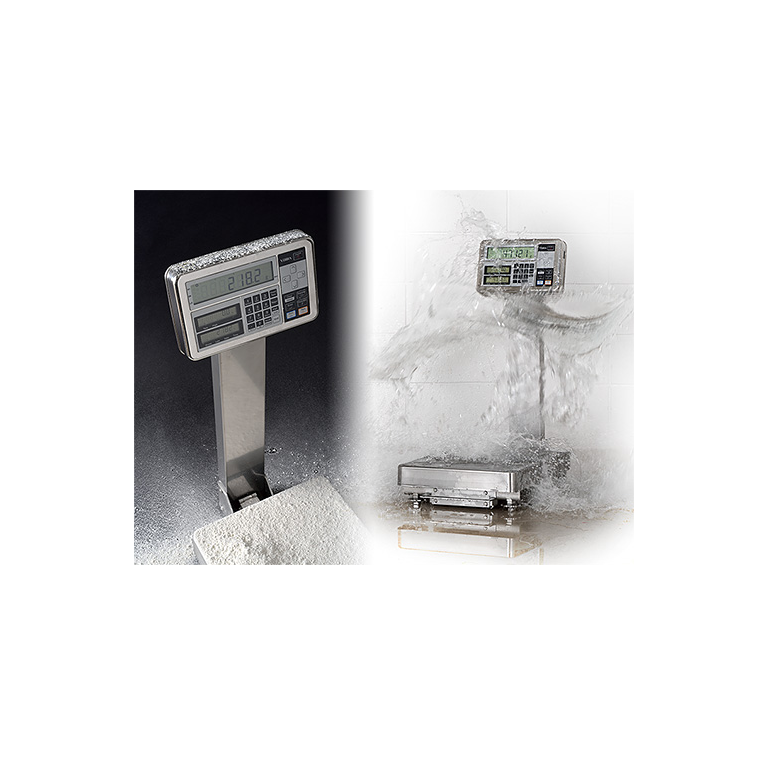

IP protection, easy to clean: All models in FZ series have IP protection (rating 65) which allows FZ to be used in tough environment. After daily operation you can wash FZ with water and keep balance in clean condition

Specification:

• Available with either the i02 or i03 indicators

• Scale cable: 5m for the FZ 150K1GF and 300K1GF. 1m for all other models

• Atex approved for Zone 0, 1 and 2

• Tuning fork sensor. Resolution up to 620,000 divisions

• Date and time. Two RS232 outputs

• Checkweighing and counting functions

• Supplied with safe area mains PSU. 5m cable

Model	Capacity	Division	Stamped Division	Plate [mm]
FZ 623Ex-i02	620g	0.001g	0.01g	140 dia
FZ 3202Ex-i02	3200g	0.01g	0.1g	190 x 190
FZ 6202Ex-i02	6200g	0.01g	0.1g	190 x 190
FZ 15001Ex-i02	15kg	0.1g	1g	190 x 190
FZ 30K0.1GEx-i02	30kg	0.1g	1g	530 x 380
FZ 60K0.1GEx-i02	60kg	0.1g	1g	530 x 380
FZ 100K1GEx-i02	100kg	1g	10g	530 x 380
FZ 150K1GEx-i02	150kg	1g	10g	800 x 600
FZ 200K1GEx-i02	200kg	1g	10g	530 x 380
FZ 300K1GEx-i02	300kg	1g	10g	800 x 600

Model	Capacity	Division	Stamped Division	Plate [mm]
FZ 623EX-i03	620g	0.001g	0.01g	190 x 190
FZ 320Ex-i03	3200g	0.01g	0.1g	190 x 190
FZ 620EX-i03	6200g	0.01g	0.1g	190 x 190
FZ 1500Ex-i03	15kg	0.1g	1g	190 x 190
FZ 30K0.1G1Ex-i03	30kg	0.1g	1g	530 x 380
FZ 60K0.1GEx-i03	60kg	0.1g	1g	530 x 380
FZ 100K1GEx-i03	100kg	1g	10g	530 x 380
FZ 150K1GEx-i03	150kg	1g	10g	800 x 600
FZ 200K1GEx-i03	200kg	1g	10g	530 x 380
FZ 300K1GFEx-i03	300kg	1g	10g	800 x 600
