Marsden AP-200 Axle Weigher 8 Pads (20,000kg per axle)

17,195.00
(20,634.00 Incl. VAT)
Call for Stock Update
(1 review)

I'm sorry, we've sold out

Don't worry, if you enter your email below we'll notify you when it's back in stock!

About the Marsden AP-200 8 Pad Axle Weighers

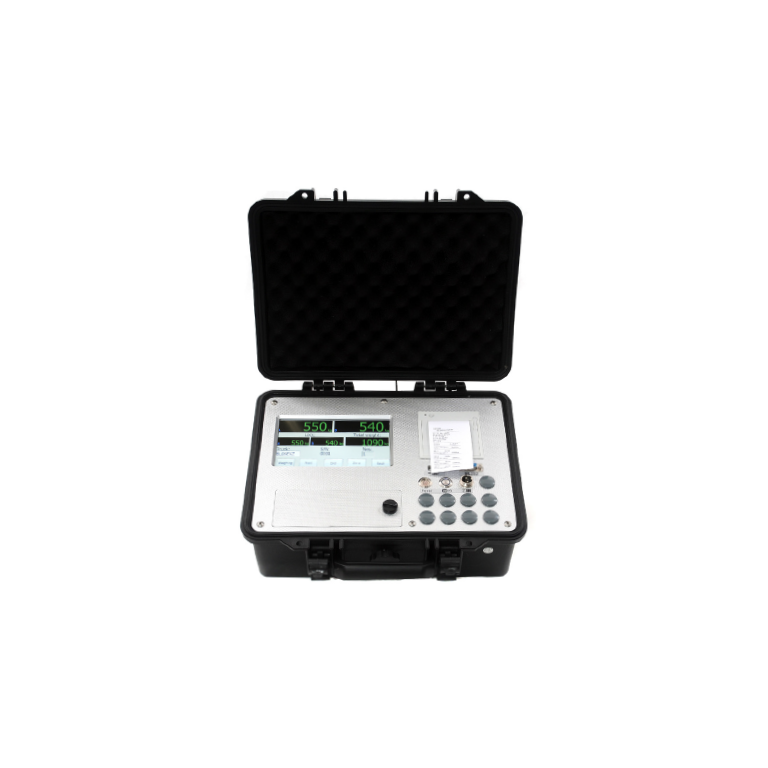

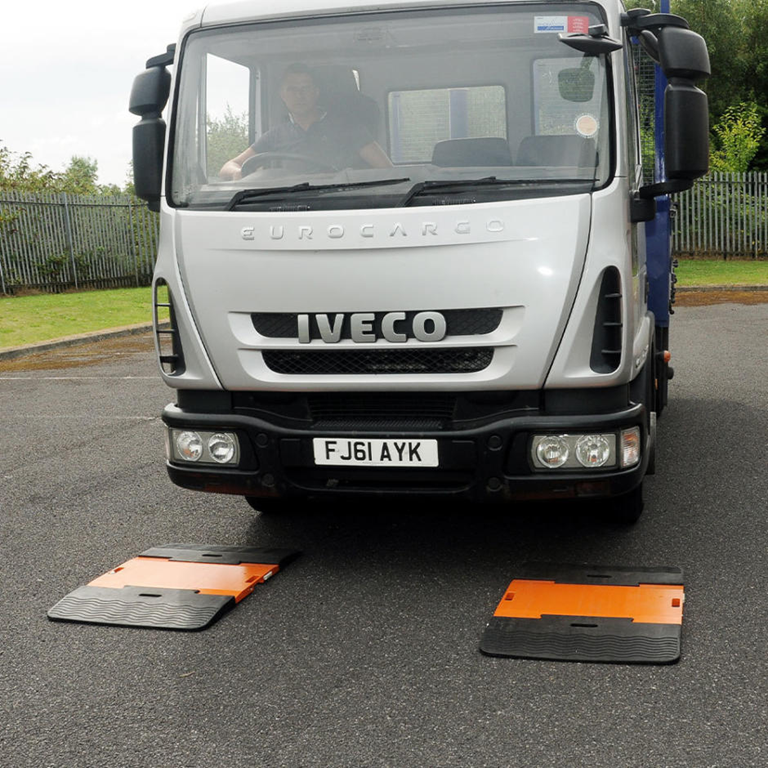

The 8 Pad System AP-200 is portable, with carry handles on the weighing pads. The digital indicator is wireless and housed in a military-grade case. The AP-200 provides highly accurate weighing, providing a left and right weight per axle (to help with even weighing) and the total weight. The results can be printed out - along with date, time and the vehicle registration number.The Marsden AP-200 weighs vehicles to a high accuracy. The vehicle can simply be driven onto the scale and weight reading taken once the wheel has stopped on the pad - static weighing. However, for faster weighing of vehicles, this vehicle weighing solution can be used for ‘in motion’ weighing. With the pads laid out on the ground, the vehicle can be driven over the pads at slow speed without stopping. The scale will capture the weight and send it to the indicator. In motion weighing provides less accuracy than static weighing, but allows you to speed up weighing processes.

AP-200 Axle Scale
    Marsden AP200 Axle Weigher features -
    • 8 Wireless, portable weigh pads
    • Touchscreen indicator
    • Portable weighing solution for all vehicles
    • Durable build
    • Wireless console
    • Waterproof pads
    • Capacity 20,000kg (10,000kg per pad)
    • Dimensions per pad 800mm x 450mm x 35mm
    • Touchscreen indicator

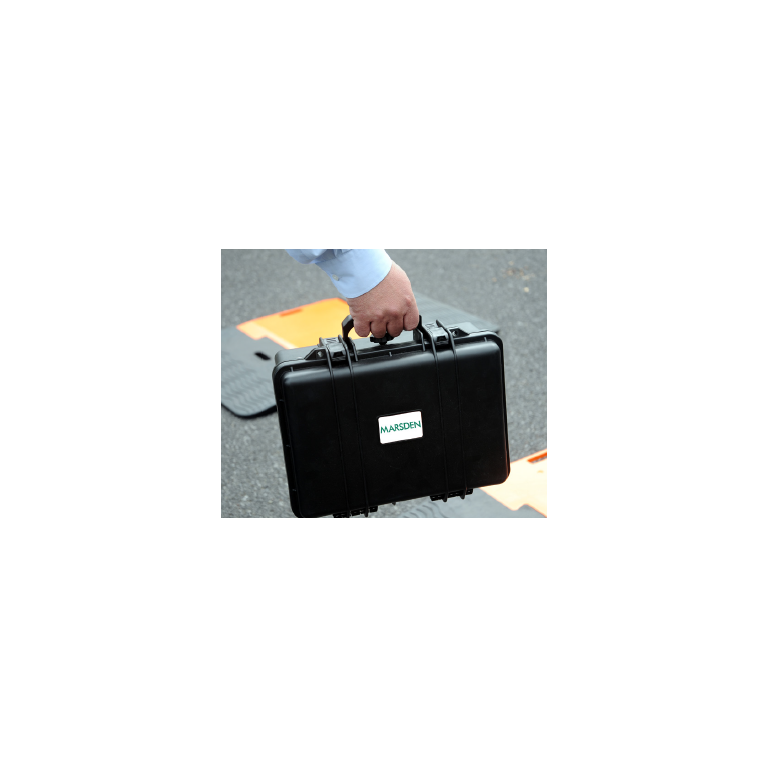

    • Indicator housed in tough, lightweight carry case

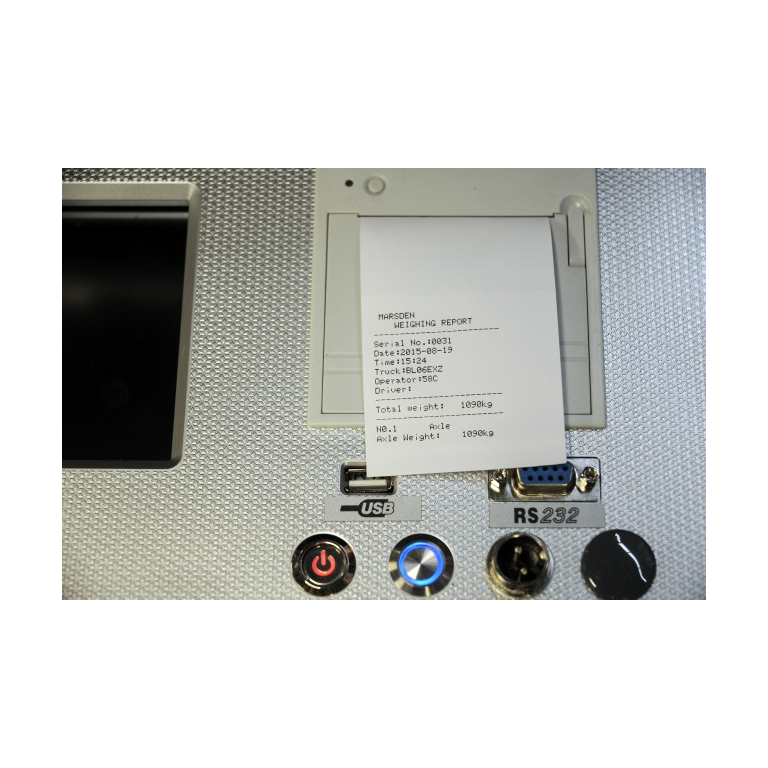

    • RS-232 or USB data transfer

      ISO9001:2015 Calibration Certificate not available for the 8 Pad Systems.
