Valueweigh VWAP Vehicle Axle Pads

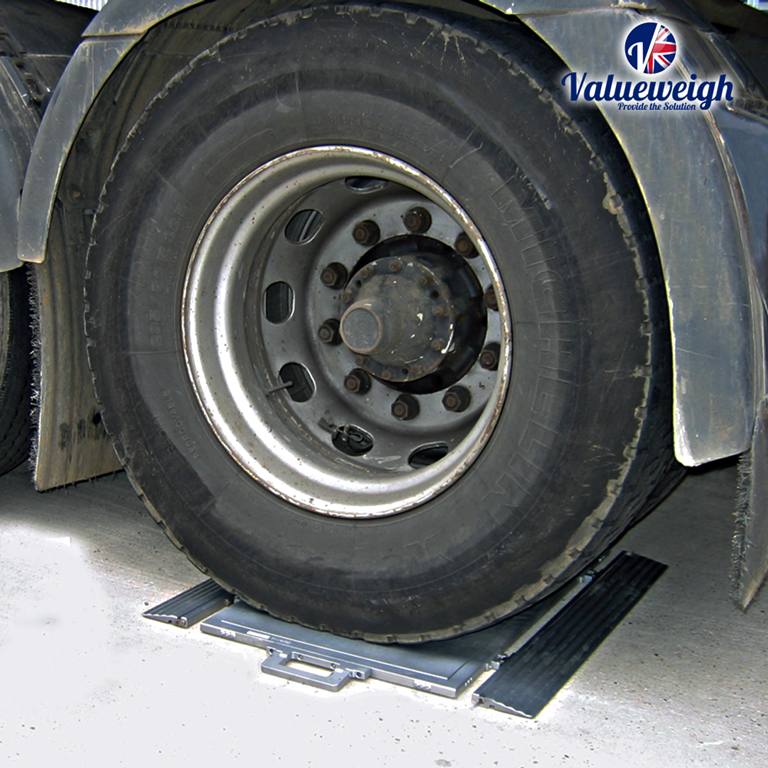

VWAP Axle weighpads provide the perfect solution to all axle weighing applications. Choose from a range of different size and capacity weighpads, linked to the Dini 3590ETKR Touchscreen weighing indicator with printer and carry case. Individual axle weights can be captured statically or dynamically and can be viewed and printed. The VWAP pads are robust, ultra low profile at only 18mm high and light weight making them a reliable, easy to use and highly portable weighing solution for all types of industry. Simply drive your vehicle onto the pads and add the two weight reading together to get an accurate overall weigh of your axle (pads must be placed on a sturdy, smooth surface to weigh accurately). Optional ramps are available for the 2 and 5 tonne range and fitted as standard on the 10 and 20 tonne pads.

Availability Please Call 01296 39313

VWAP750 Valueweigh Axle Weighpads Capacity: 750kg per pad. Recommended division size 1kg Weighing Area Dimension: 360mmL x 290mmW x 18mmH Weight: 6kg. Ramps available as an option.
VWAP2 Valueweigh Axle Weighpads Capacity: 2,000kg per pad. Recommended division size 1kg  Weighing Area Dimension: 360mmL x 290mmW x 18mmH Weight: 6kg. Ramps available as an option.
VWAP2L Valueweigh Axle Weighpads Capacity: 2,000kg per pad. Recommended division size 1kg  Weighing Area Dimension: 560mmL x 460mmW x 18mmH Weight: 15kg. Ramps available as an option.
VWAP5 Valueweigh Axle Weighpads Capacity: 5,000kg per pad. Recommended division size 5kg  Weighing Area Dimension: 360mmL x 290mmW x 18mmH Weight: 7kg. Ramps available as an option.
VWAP5L Valueweigh Axle Weighpads Capacity: 5,000kg per pad. Recommended division size 5kg  Weighing Area Dimension: 560mmL x 460mmW x 18mmHWeight: 15kg. Ramps available as an option.
VWAP10 Valueweigh Axle Weighpads Capacity: 10,000kg per pad. Recommended division size 10kg  Weighing Area Dimension: 720mmL x 420mmW x 18mmH Weight: 19kg. Ramps(2)removable aluminium alloy with cable locators.
VWAP20 Valueweigh Axle Weighpads Capacity: 20,000kg per pad. Recommended division size 20kg  Weighing Area Dimension: 720mmL x 420mmW x 18mmH Weight: 19kg. Ramps(2)removable aluminium alloy with cable locators.
VWAP20L Valueweigh Axle Weighpads Capacity: 20,000kg per pad. Recommended division size 20kg  Weighing Area Dimension: 900mmL x 620mmW x 18mmH Weight: 35kg. Ramps(2)removable aluminium alloy with cable locators.
VWAP40 Valueweigh Axle Weighpads Capacity: 40,000kg per pad. Recommended division size 20kg  Weighing Area Dimension: 900mmL x 500mmW x 18mmH Weight: 35kg. Ramps(2)removable aluminium alloy with cable locators.

Important Note: Axle weigh pads provide a percentage accuracy which can vary depending on the ground surface, type of vehicle and environmental conditions. Axle pads are not Class III approved and are not suitable for applications where approved high accuracy is required. Please ensure your application is suited for axle pads, if you require a greater level of weighing accuracy and repeatability we would be pleased to quote you for alternative options.

---
