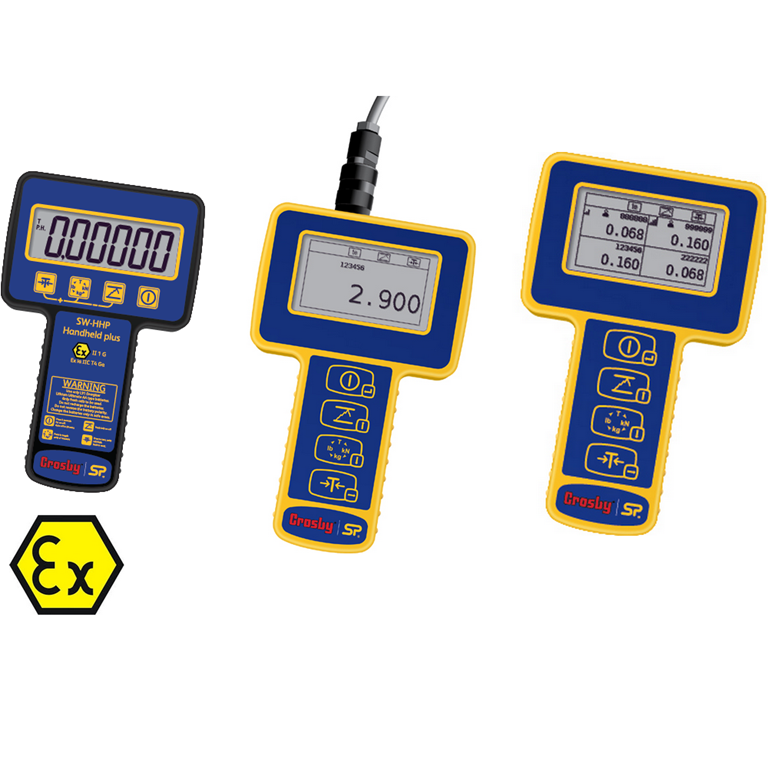

Straightpoint HHP Handheld Plus
The Straightpoint Handheld Plus models are a rugged and versatile digital handheld display with a broad range of features and suitable for all Straightpoint load cell products. At the heart of the ergonomically designed Handheld plus is a powerful PCB providing industry leading features such as user selectable units of measure (tonnes, lbs, kg and kN), programmable audible overload alarm (HHP & SW-HHP), peak hold, pre-set tare and a user resettable (HHP & SW-HHP) overload counter. This crucial overload alarm counter is a requirement for many safety and quality control departments, as it keeps track of overload events, allowing the load cell in question to be removed from service immediately, following the calibration voiding overload event. The load cell in question can then be sent out for proper testing and, if necessary, recalibration before re-entering service. The HHP is suitable for connection via cable to any Straightpoint cabled load cell product (optional 10m,20m,30m,50m connecting cables available in Accessories) and easily adapted to any other manufacturers’ load cell product with a mv/v output. In addition to the standard HHP the SW-HHP is suitable for connection to any Straightpoint wireless load cell, has a range of up to 1000m/3280ft (ATEX 700m/2300ft) and is supplied as standard with the Radiolink plus load cell.
- Overload counter
- User settable 90db audible overload alarm (not ATEX)
- Multiple display units – tonnes, lbs, kg and kN
- 100Hz Peak hold
- Pre-set tare
- Unrivalled Wireless range 1000m/3280ft
Part Number |
HHP |
SW-HHP |
SW-HHP ATEX |
Battery Type |
2xAA |
2XAA Energizer L91 |
|
Battery Life |
100 hrs continuous |
40 hrs continuous |
60 Hours Continuous |
Display Type |
240x128 Multi line dot matrix with backlight |
6 Digit 25mm/1" LCD |
|
Operating Temp |
-10 to +50 °C / 14 to 122 ˚F |
-20 to +70 °C / -4 to 158 ˚F |
-10 to +50 °C / 14 to 122 ˚F |
Display Rate |
3Hz |
||
Protection |
IP65 or NEMA 4X |
||
Excitation |
5v |
N/A |
N/A |
Max Sensitivity |
3mv/v |
N/A |
N/A |
Max resolution |
1:9999999(Normal Mode) |
1:999999 (Normal Mode) |
|
Connectivity |
6-way Female Binder 723 Socket |
Wireless 2.4 GHz |
Wireless 2.4 GHz |
