Ohaus Defender 6000 Hybrid Washdown Bench Scales
About the Ohaus Defender 6000 Extreme Washdown Scales

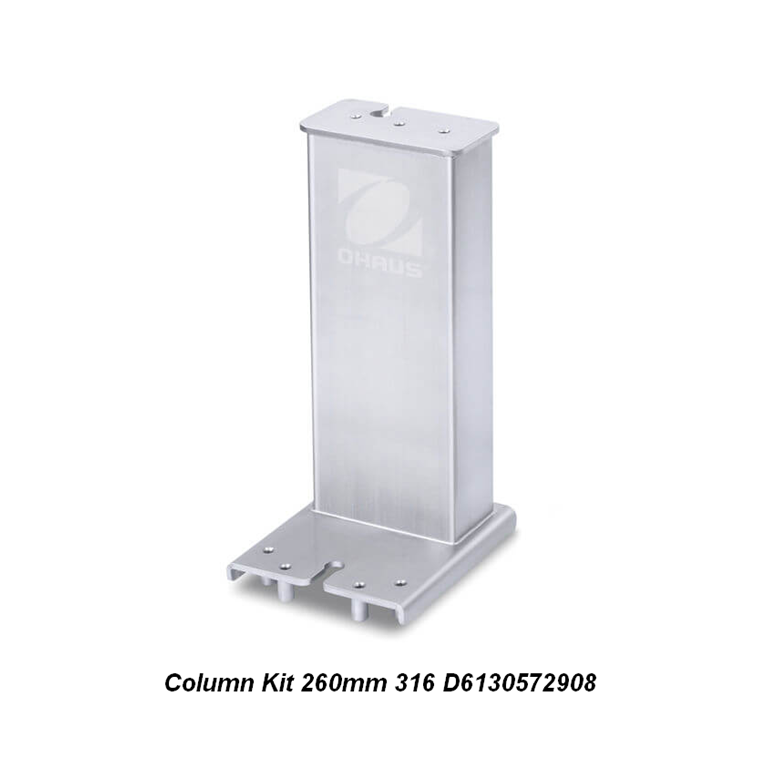

The Ohaus Defender 6000 Hybrid Series Extreme Washdown Bench Scale is specifically designed for food, chemical and pharmaceutical applications, including production and packaging. The 316 stainless steel platform and frame, and hermetically-sealed stainless steel IP69K load cell stands up to harsh cleaning in processing and packaging environments with IP68 immersion/IP69K washdown protection. Featuring advanced applications including configurable Check weighing, Percent, Weighing, Filling and Dynamic Weighing or Display Hold and Parts Counting. The i-D61PW indicator is mounted on a stainless pole. It can store up to 1,000 weighing results which can be transferred to a PC or system for traceability. 3kg to 30kg models have 316 stainless steel top and bottom frame, hermetically sealed IP68/IP69K stainless steel loadcell. 60kg and 150kg models have 316 stainless steel removable weighing platform with 316 stainless steel frame, hermetically sealed IP68/IP69K stainless steel loadcell. All models are available Trade Approved (-M)
Applications Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing (Display Hold)
Display 6-digit, 7-segment LCD display with white backlight, 45 mm high digits
Operation 6 x D type cell battery

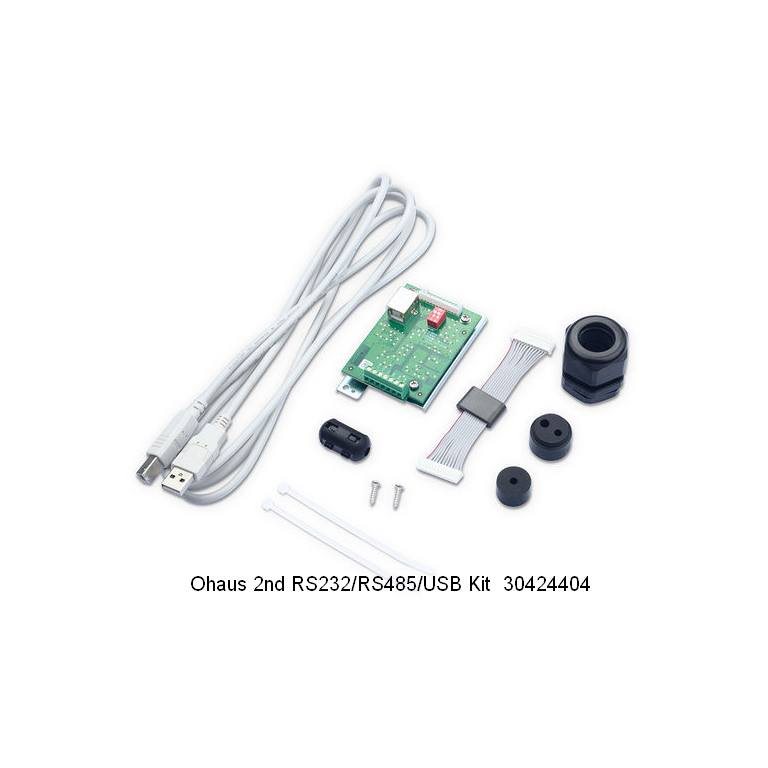

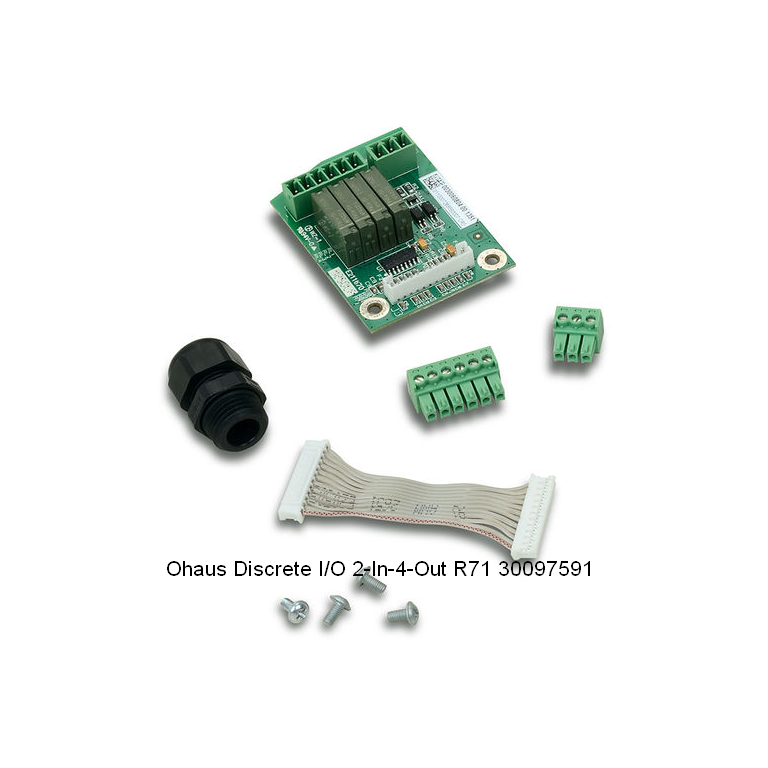

Communication RS232 and USB Host included Optional Ethernet, WiFi/Bluetooth, 2nd RS232/RS485/USB Device, Analog Output, 2 In/4 Out Discrete I/O
Construction Indicator - Polycarbonate plastic housing, 316 stainless steel bracket. Frame - 316 stainless steel top and bottom frame, hermetically sealed IP68/IP69K stainless steel loadcell
Modes Weighing, Check weighing, Percent Weighing, Dynamic Weighing/Display Hold, Counting with APW optimization, Check counting, Filling (i-DT61XWE only
Model |
Weighing Capacity (Max) (kg) |
Readability (d) g |
Weigh Plate (mm) |
|---|---|---|---|
| i-D61PW3K1S6 | 3 | 0.5 | 250 v 250 |
| i-D61PW6K1S6 |
6 | 0.5 | 250 v 250 |
| i-D61PW15K1R6 | 15 | 1 | 300 x 300 |
| i-D61PW30K1R6 |
30 | 2 | 300 x 300 |
| i-D61PW60K1L7 | 60 | 5 | 500 x 400 |
| i-D61PW150K1L7 | 150 | 10 | 500 x 400 |
Model |
Weighing Capacity (Max) (kg) |
Readability (d) (e) g |
Weigh Plate (mm) |
|---|---|---|---|
| i-D61PW3K1S6-M | 3 | 1 | 250 x 250 |
| i-D61PW6K1S6-M | 6 | 2 | 250 x 250 |
| i-D61PW15K1R6-M | 15 | 5 | 300 x 300 |
| i-D61PW30K1R6-M | 30 | 10 | 300 x 300 |
| i-D61PW60K1L7-M | 60 | 20 | 500 x 400 |
| i-D61PW150K1L7-M | 150 | 50 | 500 x 400 |
