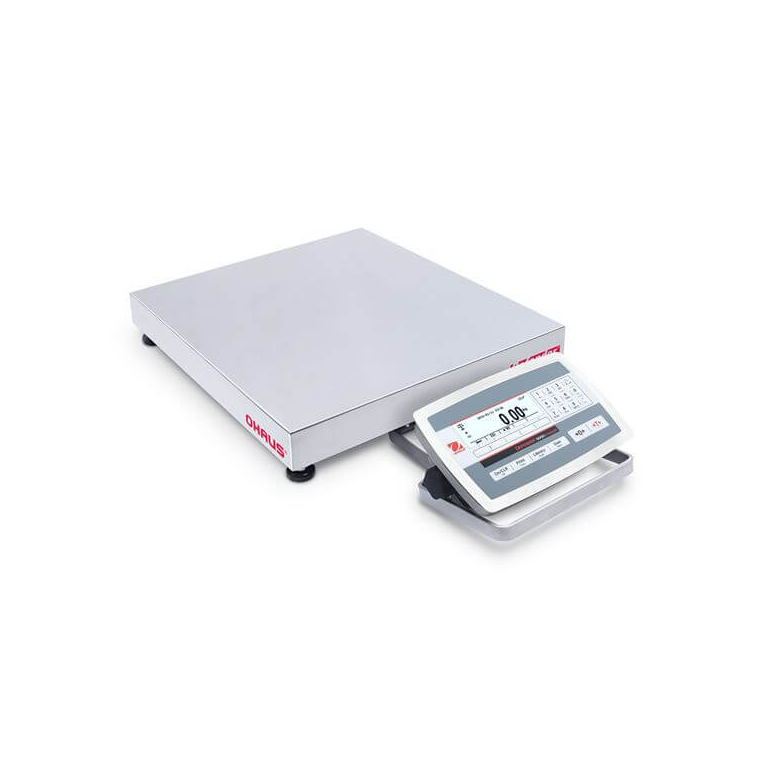

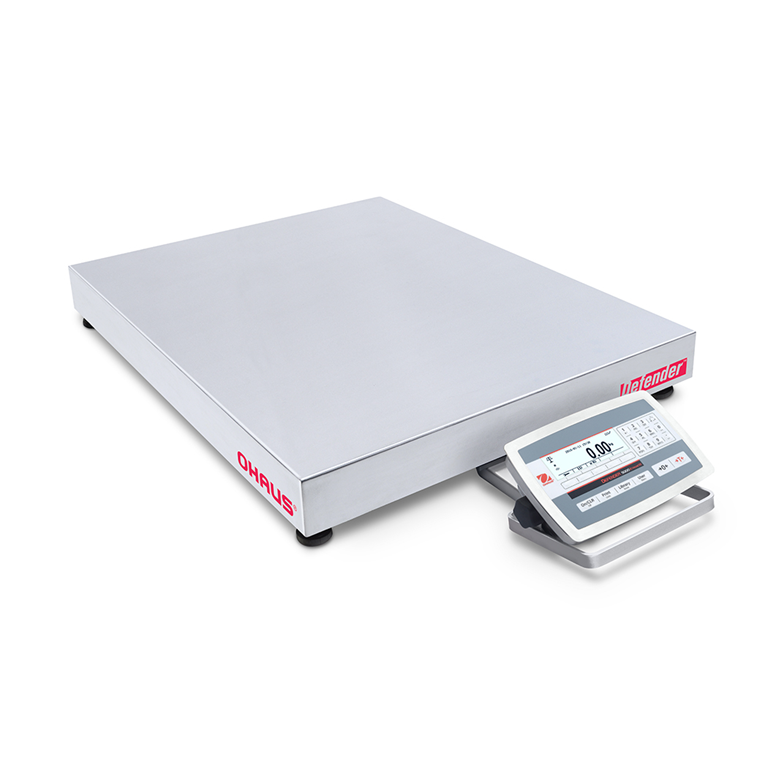

Ohaus Defender 5000 Front Mount Stainless Steel Scales
Ohaus Defender 5000 Stainless Steel Multifunctional Washdown Bench Scales have IP67 rated load cells and IP68 rated indicators. Equipped with a front mount handle for mobility and portability. They offer a durable performance at a practical price in demanding industrial and commercial applications. They are complete with a multitude of features for production, packaging, inventory and shipping; maximum configurability print output, GMP/GLP data output, library/user management and multiple connectivity options. Applications include Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing (Display Hold)The large clear backlit LCD display has alpha-numeric keypad & function keys which allow for a simplified user experience. The On-screen prompts and soft keys guide the user through the operation. 50,000 item library & 1,000 user profiles can be downloaded or uploaded for easy set-up (with SD Card). GMP/GLP with time/date for result traceability. Available in both dual and single ranges. Optional Trade Approved & Legal for Trade models
Ohaus Defender 5000 Front Mount Stainless Steel Scale features -
- Applications Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing (Display Hold)
- Display Backlit Liquid Crystal Display (LCD), 256 x 80 pixels

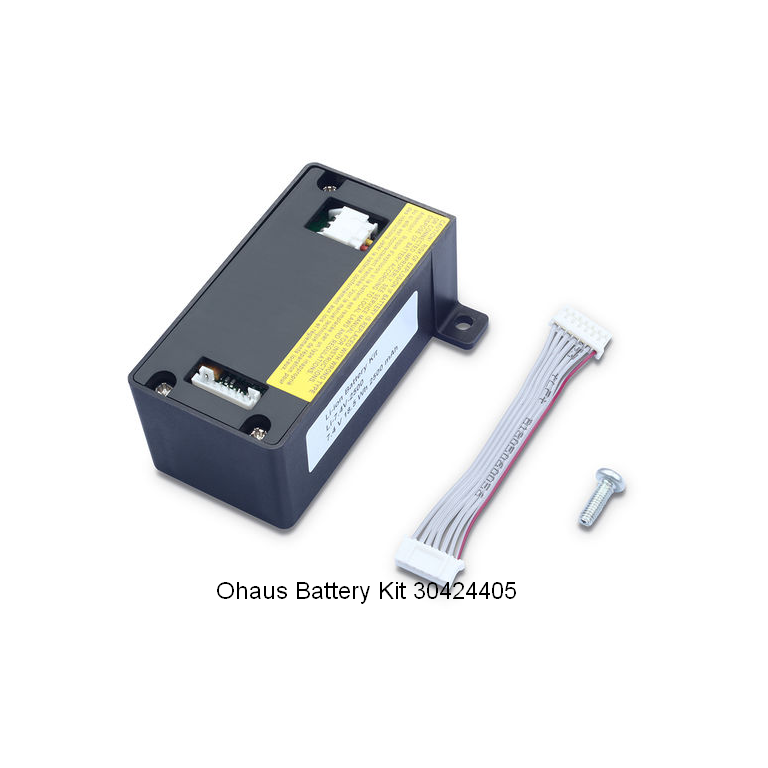

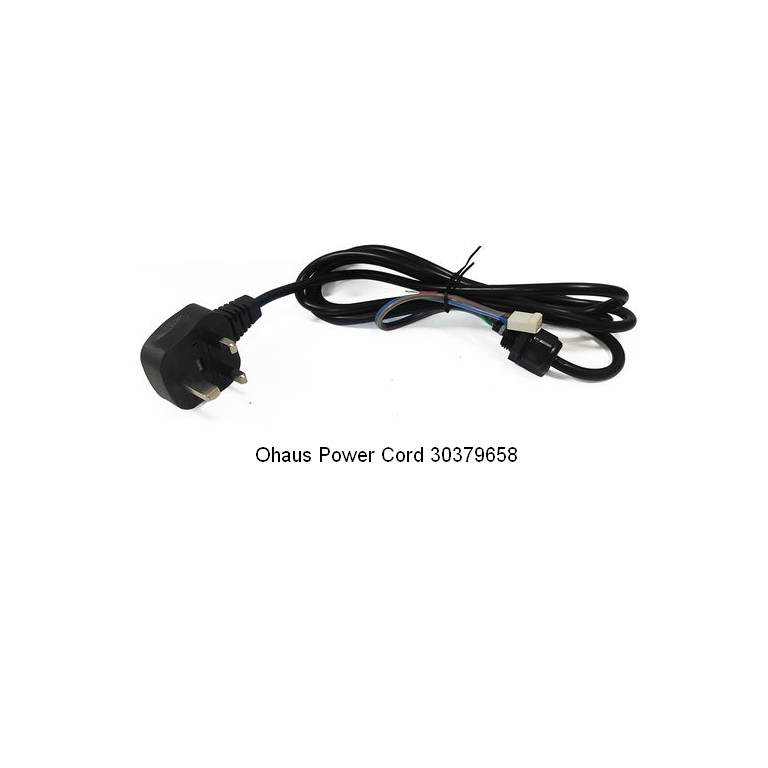

- Operation Internal power supply with power cord (included) or rechargeable battery (sold separately as an accessory)
- Communication Easy access communication ports including RS232 and Micro SD slot (included), second RS232/RS485/USD device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog Output (sold separately as accessories); GLP/GMP data output with real-time clock
- Construction 304-grade stainless steel platform and frame, stainless steel IP68 indicator, IP67 aluminium or stainless load cell, non-slip adjustable rubber feet
- Design Features Resolution up to dual range 3,000e or single range3000e, 150% overload capacity, check-weighing display and beep, menu lock switch, selectable display languages, selectable filter, stability indicator, overload/underload indicators, selectable display controls, auto print and tare.
Dual range with aluminium load cell
Model |
Trade |
Capacity |
Div. |
Platform |
Item No. |
D52XW6WQDR5 |
3kg/6kg |
0.2g/0.5g |
305 x 305 |
30444712 |
|
D52XW15WQDR5 |
6kg/15kg |
0.5g/1g |
305 x 305 |
30444713 |
|
D52XW15WQDL5 |
6kg/15kg |
0.5g/1g |
400 x 400 |
30444714 |
|
D52XW30WQDL5 |
15kg/30kg |
1g/2g |
400 x 400 |
30444715 |
|
D52XW60WQDL5 |
30kg/60kg |
2g/5g |
400 x 400 |
30444716 |
|
D52XW60WQDX5 |
30kg/60kg |
2g/5g |
500 x 500 |
30444717 |
|
D52XW150WQDX5 |
60kg/150kg |
5g/10g |
500 x 500 |
30441429 |
|
D52XW6WQDR5-M |
Yes |
3kg/6kg |
1g/2g |
305 x 305 |
30461565 |
D52XW15WQDR5-M |
Yes |
6kg/15kg |
2g/5g |
305 x 305 |
30461566 |
D52XW15WQDL5-M |
Yes |
6kg/15kg |
2g/5g |
400 x 400 |
30461431 |
D52XW30WQDL5-M |
Yes |
15kg/30kg |
5g/10g |
400 x 400 |
30461432 |
D52XW60WQDL5-M |
Yes |
30kg/60kg |
10g/20g |
400 x 400 |
30461433 |
D52XW60WQDX5-M |
Yes |
30kg/60kg |
10g/20g |
500 x 500 |
30461434 |
D52XW150WQDX5-M |
Yes |
60kg/150kg |
20g/50g |
500 x 500 |
30461435 |
Single range with stainless steel load cell
Model |
Trade |
Capacity |
Readability |
Platform |
Item No. |
D52XW15WQR5 |
15kg |
1g |
305 x 305 |
30471138 |
|
D52XW15WQL5 |
15kg |
1g |
400 x 400 |
30471139 |
|
D52XW30WQL5 |
30kg |
2g |
400 x 400 |
30471140 |
|
D52XW60WQL5 |
60kg |
5g |
400 x 400 |
30471141 |
|
D52XW60WQX5 |
60kg |
5g |
500 x 500 |
30471142 |
|
D52XW150WQX5 |
150kg |
10g |
500 x 500 |
30471143 |
|
D52XW15WQR5-M |
Yes |
15kg |
5g |
305 x 305 |
30471152 |
D52XW15WQL5-M |
Yes |
15kg |
5g |
400 x 400 |
30471153 |
D52XW30WQL5-M |
Yes |
30kg |
10g |
400 x 400 |
30471154 |
D52XW60WQL5-M |
Yes |
60kg |
20g |
400 x 400 |
30471155 |
D52XW60WQX5-M |
Yes |
60kg |
20g |
500 x 500 |
30471156 |
D52XW150WQX5-M |
Yes |
150kg |
50g |
500 x 500 |
30471157 |
Even though these scales are somewhat costly they really do work and are so reliable never had an issue with them and are always spot on
