Dini Argeo TPW EX 3GD Atex Pallet Truck Scales

2,330.00
(2,796.00 Incl. VAT)
Save £469.00
Item in Stock
(0 review)

Scale Selection
Accessories
Add calibration Certificate

About the Dini Argeo TPW EX 3GD Atex Pallet Truck Scales

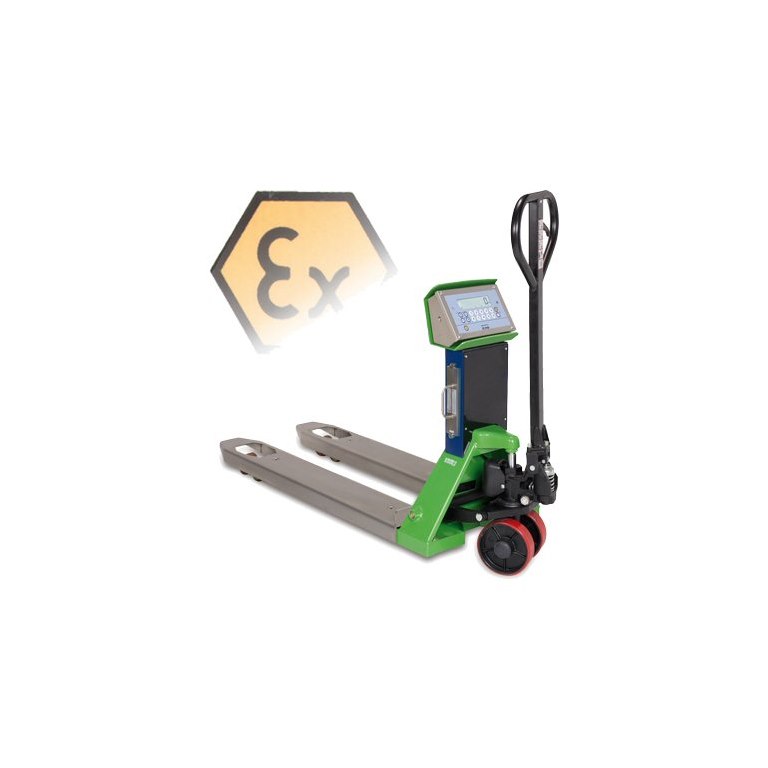

The Dini Argeo TPW EX 3GD Atex Pallet Truck Scale is for use in hazardous areas (ZONES 2 & 22) with Ex II 3G IIC T6 Gc X and Ex II 3D IIIC T115C° Dc X. Extractable battery, rechargeable in safe area, connectable and disconnectable to the weighing system also in hazardous area. About 150 hours, or 24/7 with optional second rechargeable battery. Weight indicator with waterproof casing in IP68 stainless steel, easy to clean and resistant in harsh and corrosive environments. The large swivelling head LCD display with 25mm digits makes it easier to read even in low light conditions. 230Vac 50Hz battery charger with EU, US, UK, AU plugs as standard (charging time 12 hours) for charging in a safe area. Forks with low profile, only 85mm, dimensions 1150 x 550 x 85 mm. Lifting height: 200 mm. Weight approx. 125kg. Bearing structure in extra-thick steel, oven-fire painted. Optional stainless steel forks. For direct weighing of light metals such as aluminum, magnesium, titanium and their alloys, the use of optional STAINLESS STEEL fork covers is necessary.

Also available in a version approved for legal-for-trade use.

  Dini Argeo TPW EX 3GD Hazardous Zone Atex Pallet Truck details -

  • Zones 2 and 22
  • Maximum lifting capacity: 2000 kg.
  • Accuracy: +/- 0.05% of the maximum capacity.
  • Fork dimensions 1150 x 550 x 85 mm.
  • Weighs about 125 kg.
  • Bearing structure in extra thick sheet steel and oven-fire painted interior construction.
  • Standard fitted swivelling column head.
  • Steering wheels and double loading rollers with a polyurethane coating.
  • Atex certified, 4 stainless steel IP68 shear-beam load cells.
  • Indicator with easy to clean satined stainless steel case with IP68 enclosure built to withstand humid and dusty environments.
  • Calibration and Set-Up parameters configurable from keyboard.
  • Power supply through extractable battery, rechargeable in safe zone.
  • 150-hour approximate operating time.
  • Equipped with 230Vac 50 Hz battery charger to be recharged in a safe area.

  • Code
    Max
    (kg)
    d
    (kg)
    CE-M
    3000e (kg)
    d* HR
    (kg)
     TPWX3GD-2 2000 0.2  -- 0.1
     TPWX3GDM-1
    1000/2000 -- 0.5/1 --
