A&D SW Series IP69K Washdown Scale

About A&D SW IP69 Waterproof scales

A&D SW digital washdown scales have an IP69 rating making them ideal for hostile environments. The SW series of scales are protected from both high pressure jets (1450 psi) and high temperature, (85°C). The water resistant housing with an IP69 rating gives the highest level of dust and water-proofing. Multicoloured LED display and membrane protected capacitive keys make for ease of use; bright, multicolored LED display with 5-step comparator lamps. Stainless steel weighing pan, frame and load cell. Capacities from 6kg x 0.002g to 150kg x 0.05kg. 6kg and 15kg models have a short pole, 30kg to 150kg have a long pole.

A&D SW Series IP69K Washdown Scale features:

• IP69K – the highest level of dust and waterproofing:
  • High pressure: ~ 10,000 kPa / 100 bars
• High temperature: ~85°C
• Ultimate protection against the effects of condensation
• Capacitive keys for light touch operation and durability
• Bright, multicoloured LED display
• 5-step comparator for check weighing and filling applications
• 5-level comparator output with colour lights: red/orange/green
• Auto tare
• Negative weighing
• Grading
• Optional desktop/wall-mount bracket
• Optional rechargeable battery

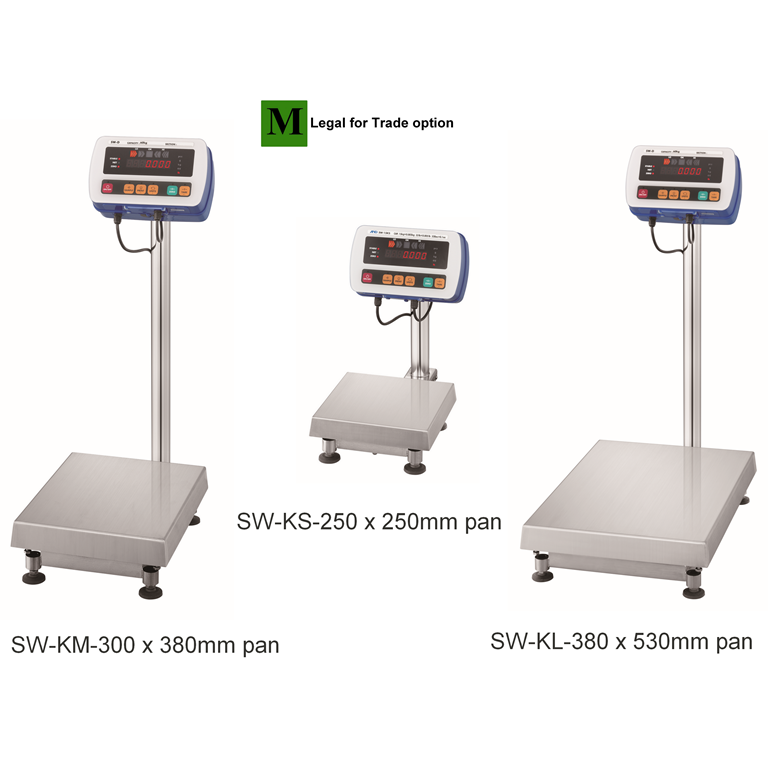

Standard Models

Model	Capacity	Div.	Plate Size	Code
SW-6KS	6kg	0.5/1/2g	250x350mm	SW-6KS
SW-15KS	15kg	1/2/5g	250x350mm	SW-15KS
SW-15KM	15kg	1/2/5g	300x380mm	SW-15KM
SW-30KM	30kg	2/5/10g	300x380mm	SW-30KM
SW-60KL	60kg	5/10/20g	390x530mm	SW-60KL
SW-60KM	60kg	5/10/20g	300x380mm	SW-60KM
SW-150KM	150kg	10/20/50g	300x380mm	SW-150KM
SW-150KL	150kg	10/20/50g	390x530mm	SW-150KL
