A&D FG Series Bench Scales

About A&D FG Series Bench Scales

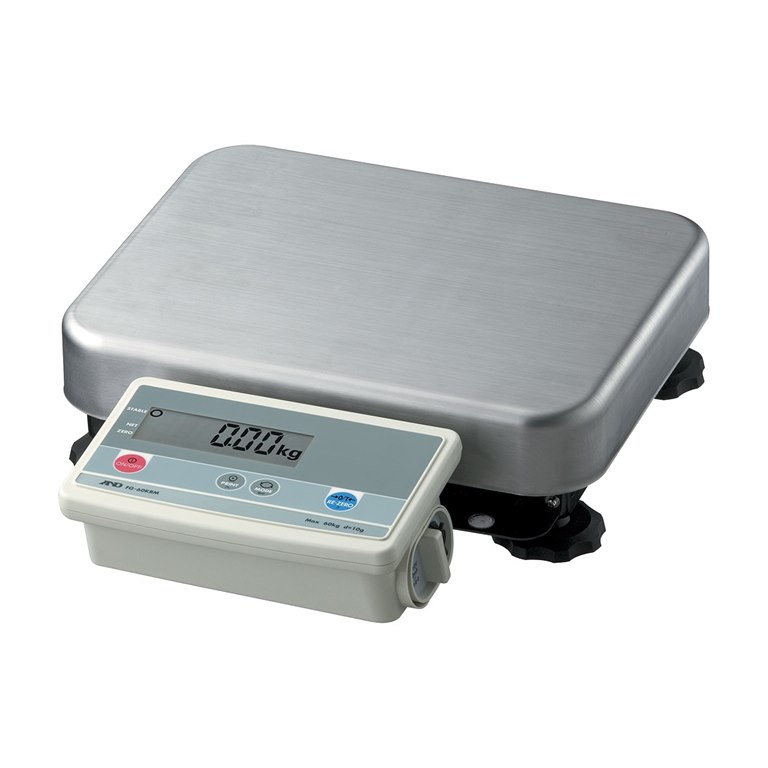

A&D FG Series Bench Scales are robust bench or floor scales with a choice of using the weighing indicator attached to the front of the platform (KBM models with 380 x 300mm base) or mounted on a fixed column (KAL models with larger 530 x 300mm base). Large LCD display with 26mm characters, counting function with HI/LO/OK indicator, and power from AC adapter supplied or 4 "C" type batteries with Auto power off.  Ideal for simple easy weighing of parcels and boxes. Optional Trade Approved and Legal for Trade models.

A&D FG Series Bench Scales, main features:

• 3 years warranty
• Trade Approved models available
• Super High Resolution Mode Selectable, 2g accuracy on FG-30, 5g accuracy on FG-60, and 10g accuracy on FG-150
• Your choice of floor mount with column (KAL models) or bench mount without column (KBM models)
• Counting Function (piece weight calculated from sample qty of items
• Comparator Function (HI LO OK displayed for check-weighing, optional output for control signals)
• Dual Power Supply (use either AC power or 4 x C cell batteries) source
• Auto Power Off (scale switches off automatically after a period of inactivity to preserve battery life)
• Environment Setting (adjust the scale response time to suit its location i.e. heavy vibration areas etc.)
• Optional RS232C Interface (FG-23)
• Optional RS232 & Comparator Relay Output (FG-24)
• Two Platform Sizes, 300x 380 mm and 300 x 530 mm

Front Display

Model	Capacity	Div.	Pan Size	Code
FG-30-KBM	30kg	2/5/10g	300x380mm	FG-30-KBM
FG-60-KBM	60kg	5/10/20g	300x380mm	FG-60-KBM

Column Display

Model	Capacity	Div.	Pan Size	Code
FG-60-KAL	60kg	5/10/20g	390x530mm	FG-60-KAL
FG-150-KAL	150kg	10/20/50g	390x530mm	FG-150-KAL

Trade Approved

Model	Capacity	Div.	Pan Size	Code
FG-30-KBM-EC	30kg	10g	300x380mm	FG-30-KBM-EC
FG-60-KBM-EC	60kg	20g	300x380mm	FG-60-KBM-EC
FG-60-KAL-EC	60kg	20g	390x530mm	FG-60-KAL-EC
FG-150-KAL-EC	150kg	50g	390x530mm	FG-150-KAL-EC

Shipping Information

Shipping to the Scottish Highlands and Islands, Northern Ireland and the Republic, Isle of Wight and the Isle of Man include an additional cost per order based on product weight. Please contact us for details. Call 01296 393133.
