Dini Argeo TPWIM-PRO "EX" 3GD Stainless Pallet Truck Scale (1000/2000kg x 0.5/1kg) Trade Approved

About the Dini Argeo TPWIM-PRO "EX" 3GD Stainless Pallet Truck Scale

The Trade Approved Stainless Dini Argeo TPWI-PRO "EX" 3GD Atex AISI 304 stainless steel pallet truck scale for use in ATEX hazardous areas 2 & 22, with Ex II 3G IIC T6 Gc X and Ex II 3D IIIC T115C° Dc X protection. Extractable battery, rechargeable in safe area, connectable and disconnectable to the weighing system even in hazardous area. Antistatic guide wheels, with polyurethane coating for smooth running. 200 mm diameter ensures optimum smoothness and manoeuvrability. Autonomy of 100 hours approximately, or 24/7 with optional second rechargeable battery. Weight indicator with waterproof casing in IP68 stainless steel, easy to clean and resistant in harsh and corrosive environments. The large LCD display with 25mm digits makes it easier to read even in low light conditions. A swivelling head is available as an option. Forks with low profile, only 85mm, dimensions 1150 x 550 x 85 mm. Lifting height: 200 mm. Weight approx. 135kg. Supporting structure made entirely of extra-thick AISI 304 stainless steel. Forks in AISI 304 stainless steel. Capacity 1000 / 2000kg x 0.5 / 1kg. Also available as standard scale, capacity 1000 / 2000kg x 0.2 / 0.5kg

Dini Argeo TPWIM-PRO "EX" 3GD Hazardous Zone Atex Pallet Truck details -

Zones 2 and 22

Maximum lifting capacity: 2000 kg.

Accuracy: +/- 0.05% of the maximum capacity.

Fork dimensions 1150 x 550 x 85 mm.

Weighs about 135 kg.

Bearing structure made entirely of extra-thick AISI 304 stainless steel.

Optional fitted swivelling column head.

Antistatic guide wheels, with polyurethane coating for smooth running.

Atex certified, 4 stainless steel IP68 shear-beam load cells.

Indicator with easy to clean satined stainless steel case with IP65 enclosure resistant in harsh and corrosive environments.

Calibration and Set-Up parameters configurable from keyboard.

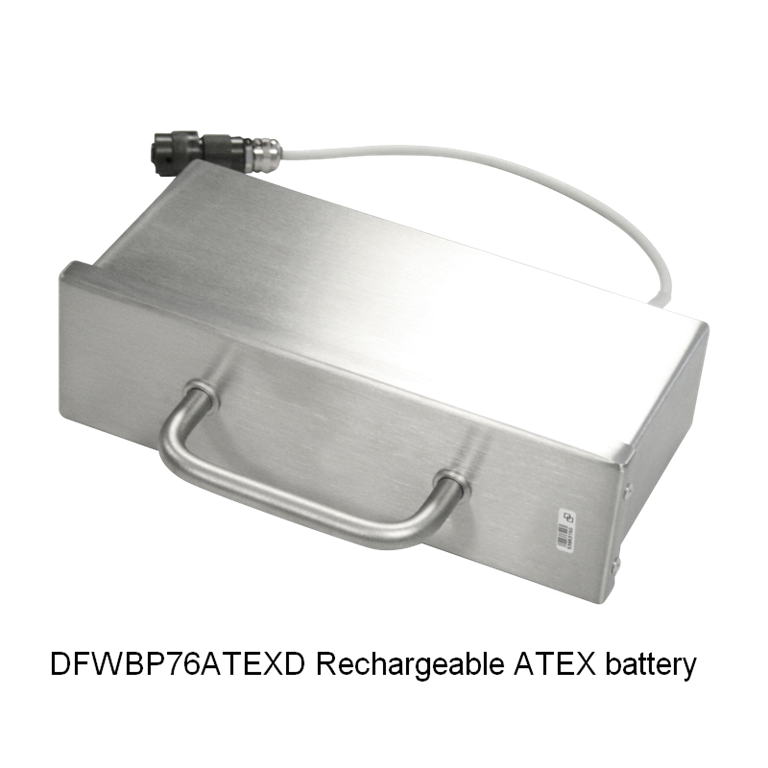

Power supply through extractable battery, rechargeable in safe zone.

100-hour approximate operating time.

Equipped with 230Vac 50 Hz battery charger to be recharged in a safe area.
