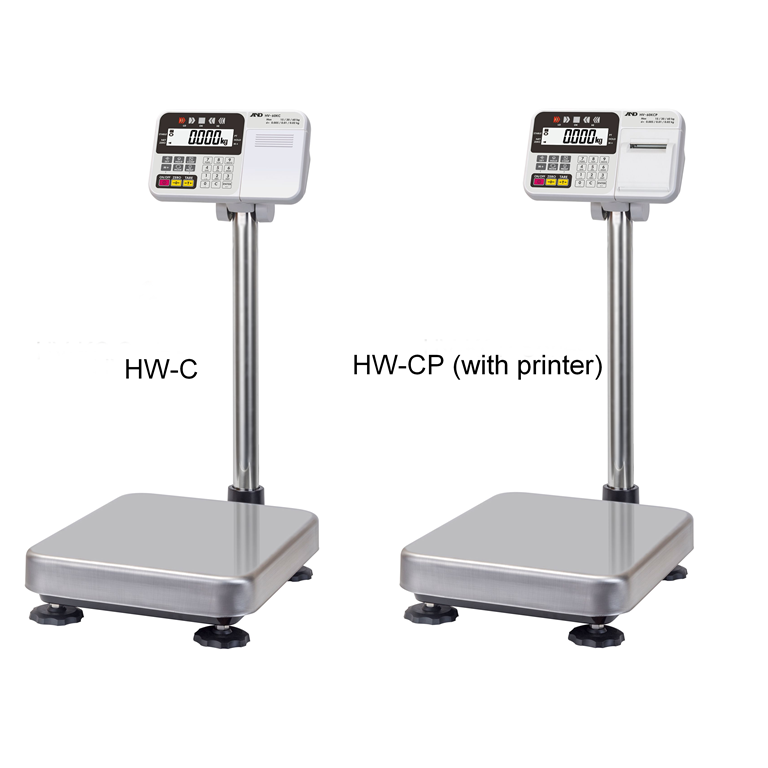

A&D HW-C & HW-CP Series Bench Scales

About A&D HW-C & HW-CP IP65 Bench Scales

A&D HW-C and HW-CP Series Multi-function Scales with high resolution accuracy and multi-colored 5-step LED comparator lights along with Auto-tare and negative comparison functions for "take-away" check weighing. Weigh platform with stainless steel plate for harsh conditions, base unit dust and waterproof to IP65. Easy to use settings using the alphanumeric keypad with Key lock function to prevent operators from making changes to the scale settings. Three slots for optional data communication interfaces (see image); Counting mode function, Accumulation (M+) function. Highly-visible, LCD display (25 mm character height) with white backlight. KCP series have an internal printer. Operation with either AC adapter or four D batteries for the HW-KC series and mains power adaptor for the HW-KCP series with printer.

A&D HW-C and A&D HW-CP Series Multi-function Bench Scales key features:

• High Resolution Models with 3 choices of platform size and capacities
• Auto-tare and negative comparison functions realizing “take-away” check weighing
• Highly-visible, LCD display (25 mm character height) with white backlight
• Quick and easy settings using the alphanumeric keypad
• Key lock function to prevent operators from making changes to the scale settings
• Optional roller conveyers for weighing in production lines
• Optional Built-in printer for creating paper-based records on the spot (for the HW-KCP series)
• Universal Flexi Coms (UFC) function to edit serial data output/printout format
• Wide selection of capacities and resolutions
• IP65 dust & waterproof base unit with a stainless steel (SUS430) pan
• Three slots for optional data communication interfaces
• Display hold function
• Counting mode function
• Accumulation (M+) function
• Operation with either AC adapter or four D batteries (for the HW-KC series)
• Display angle adjustable to four levels
• Optional 5 m extension cable and wall-mount bracket for the display unit
• Display cover provided as standard

Model	Capacity	Div.	Plate Size	Code
HW-10KC	10kg	1g	250x250mm	HW-10KC
HW-60KC	60kg	5g	330x424mm	HW-60KC
HW-100KC	100kg	10g	390x530mm	HW-100KC
HW-200KC	220kg	20g	390x530mm	HW-200KC

Models with Printer

Model	Capacity	Div.	Plate Size	Code
HW-10KCP	10kg	1g	250x250mm	HW-10KCP
HW-60KCP	60kg	5g	330x424mm	HW-60KCP
HW-100KCP	100kg	10g	390x530mm	HW-100KCP
HW-200KCP	220kg	20g	390x530mm	HW-200KCP

Shipping Information

Shipping to the Scottish Highlands and Islands, Northern Ireland and the Republic, Isle of Wight and the Isle of Man include an additional cost per order based on product weight. Please contact us for details. Call 01296 393133.
